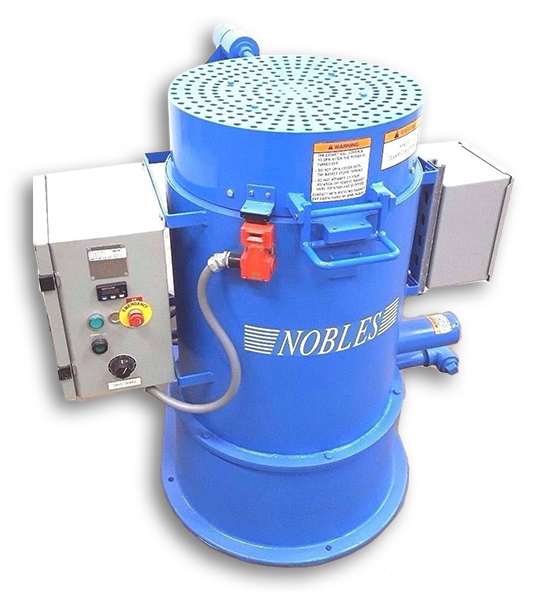

Oakland-Rampart Spin Dryers
The Turbo floor model dryers feature an all steel fabricated base for improved stability and less vibration. All Nobles floor model dryers use a magnetic disk brake motor which provides better stopping and reduces down time.
-
Nobles leading centrifugal technology, offers the following special features:
- Customization for specific requirements
- All models are available in stainless steel
- Higher chamber RPM's are available upon request
- Special basket fixturing
Available in six sizes:
T6 - 6" x 6"
T22 - 12" x 12"
T28 - 12" x 18"
T88 - 18" x 18"
T231 - 23" x 18"
T303 - 30" x 24"
| Specifications | T6 | T22 | T28 | T88 | T231 | T302 | T30H |
| Overall Height | 19.75" | 33" | 39" | 39" | 37" | 40" | 40" |
| Basket Size | 6" x 6" | 12" x 12" | 12" x 18" | 18" x 18" | 23" x 18" | 30" x 24" | 30" x 24" |
| Shipping Weight | 68 lbs. | 491 lbs. | 538 lbs. | 610 lbs. | 1600 lbs. | 2300 lbs. | 2400 lbs. |
| Motor Size | 1/4 HP | 2 HP | 2 HP | 2 HP | 5 HP | 10 HP | 10 HP |
| Load Rating including basket* |
7 lbs. | 75 lbs. | 100 lbs. | 150 lbs. | 250 lbs. | 500 lbs. | 800 lbs. |
| Basket RPM | 1075 | 725 | 725 | 600 | 350 | 300 | 300 |
| Drive | Direct | 2 V-Belts | 2 V-Belts | 2 V-Belts | 3 V-Belts | 3 V-Belts | 4 V-Belts |
| Heating Unit | Electric-600 Watts | Electric-2000/4000 Watts Steam | Electric-2000/400 Watts Steam | ||||
| Base Construction | Steel or Stainless Steel | Fabricated Steel | Fabricated Steel | Fabricated Steel | Steel Plate | Steel Plate | Steel Plate |
| Chamber Construction ** | Arc-Welded Steel Plate or Stainless Steel | Arc-Welded Steel Plate | Arc-Welded Steel Plate | Arc-Welded Steel Plate | Arc-Welded Steel Plate | Arc-Welded Steel Plate | Arc-Welded Steel Plate |
| Electrical Voltage *** | 110/120v 230v Single Phase |
208v 230v 460v Three Phase |
208v 230v 460v Three Phase |
208v 230v 460v Three Phase |
208v 230v 460v Three Phase |
208v 230v 460v Three Phase |
208v 230v 460v Three Phase |
Oakland Manufactures a full line of baskets to handle any drying applications. Sold separately, baskets are available in 6" x 6", 12" x 12", 12" x 18", 18" x 18", 23" x 18" and 30" x 24"; in various materials such as stainless steel, polypropylene, a stainless/poly combination, and a wide range of meshes and perforations.
